Disk II Controller clone -- Anyone ever seen one like this?
AttachmentSize
Image icon IMG_6274.JPG1.5 MB
Image icon IMG_6275.JPG1.51 MB

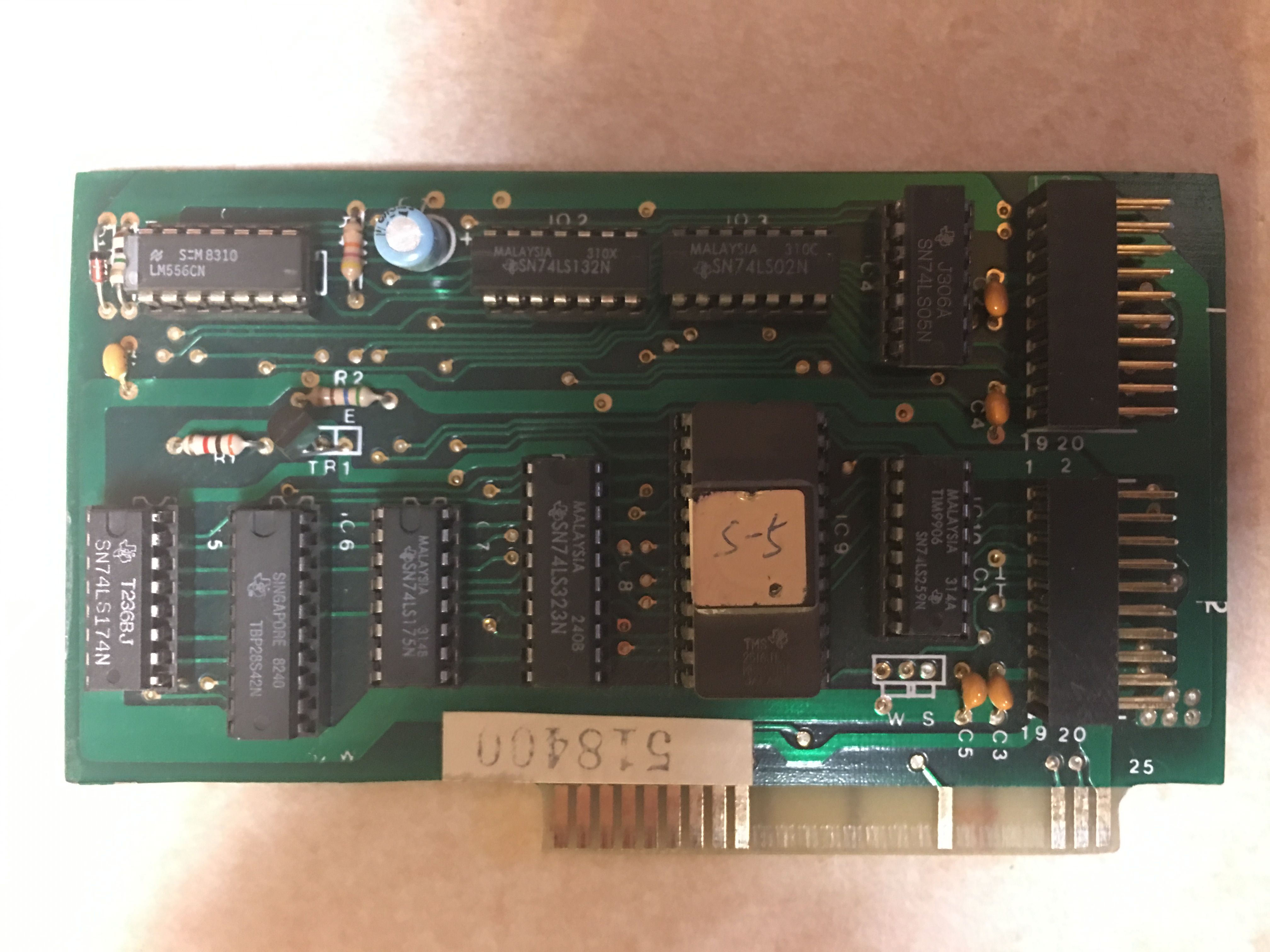

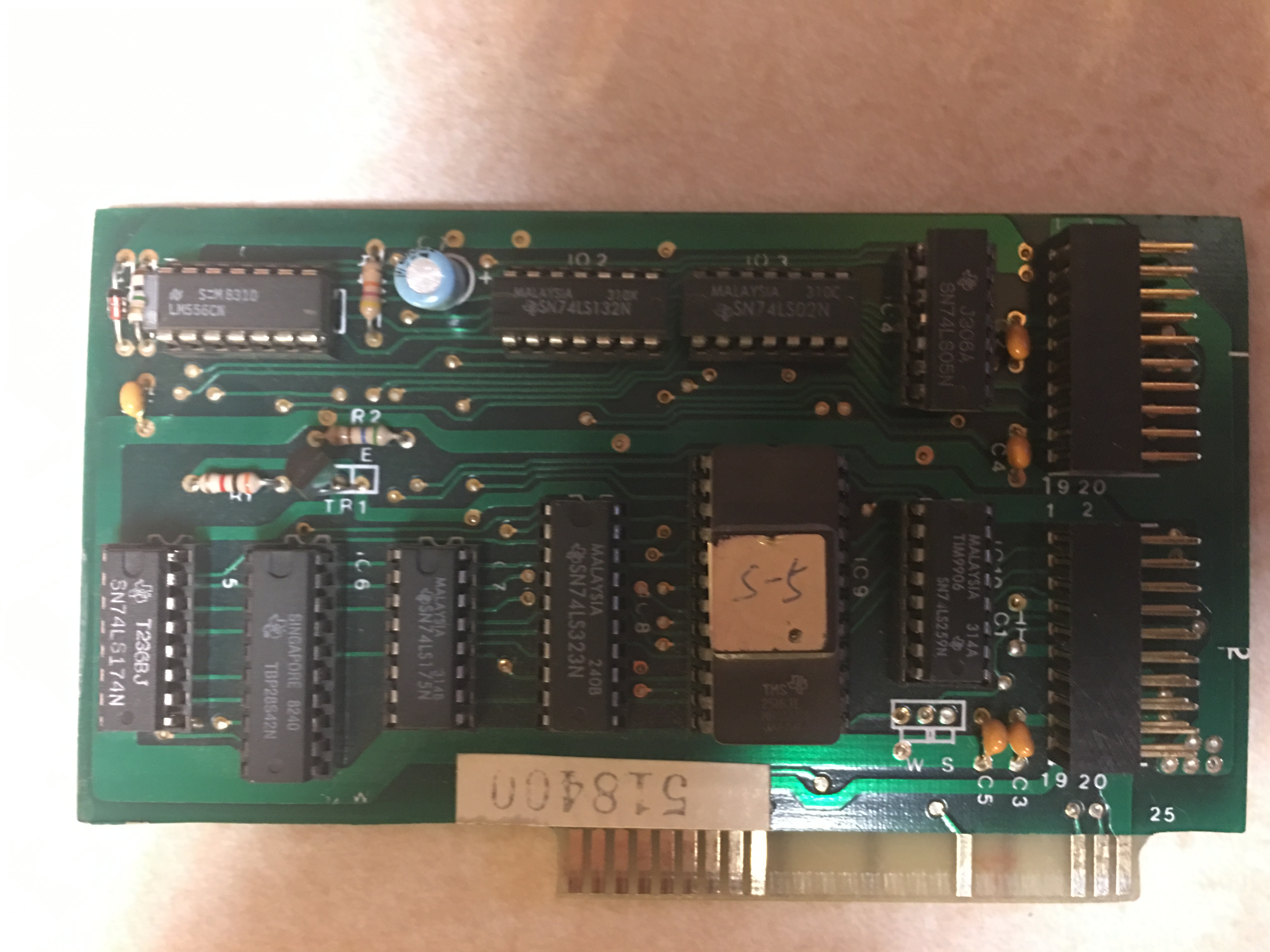

Here is a Disk II clone I found in a Apple II+ that someone is asking me to help them repair. This thing was the culprit. It is broken and I doubt if it's worth fixing unless it is the rarest Disk II clone controller on the planet. Smile

No there is no manufacturer name on the front or back. the only thing on it is the "518400" sticker and a S/W near the "TBP28S42N" PROM chip.

Thanks,
Jay

macnoyd's picture
Offline
Last seen: 1 day 14 hours ago
Joined: Oct 15 2012 - 08:59
Posts: 855
Re: Disk II Controller clone -- Anyone ever seen one like ...

I have seen one of these. I might even have one but it would be buried pretty deep in my collection. The EPROM was a replacement for the 2 PROMS as I recall. I don't see anything particularly special about this board (my opinion) other than it being one of the few Disk Drive clone boards out there. The Rana Systems board is what I wish the Apple Disk ][ board was, as it drove 4 floppy drives out of 1 card instead of only 2.
Do you plan on fixing the board?

jwg1962's picture
Offline
Last seen: 2 days 20 hours ago
Joined: Jan 29 2012 - 07:17
Posts: 363
Re: Disk II Controller clone -- Anyone ever seen one like ...

Thanks Macnoyd,

I am not sure. I will check with the owner and see what he wants to do. This controller did boot a diskette, it just took over two minutes to boot a plain DOS 3.3 disk. When I put the Apple Controller in, it took about 25 seconds.

J

Offline
Last seen: 4 hours 30 min ago
Joined: Dec 20 2003 - 10:38
Posts: 587
Re: Disk II Controller clone -- Anyone ever seen one like ...

I know I have one card with connectors on the end like that but I don't recall anything more about it. I'll see if it's handy when I get home.

Offline
Last seen: 4 hours 30 min ago
Joined: Dec 20 2003 - 10:38
Posts: 587
Re: Disk II Controller clone -- Anyone ever seen one like ...

No luck. I have about 20 controllers in one drawer. Not there so it's in storage. I'm hoping to find a couple of days to look through one of my storage lockers soon. More interested in locker that mostly has Mac stuff but should have another Apple III and profile drive
