Apple II Rev 3 motherboard - Clone, prototype or what?
AttachmentSize

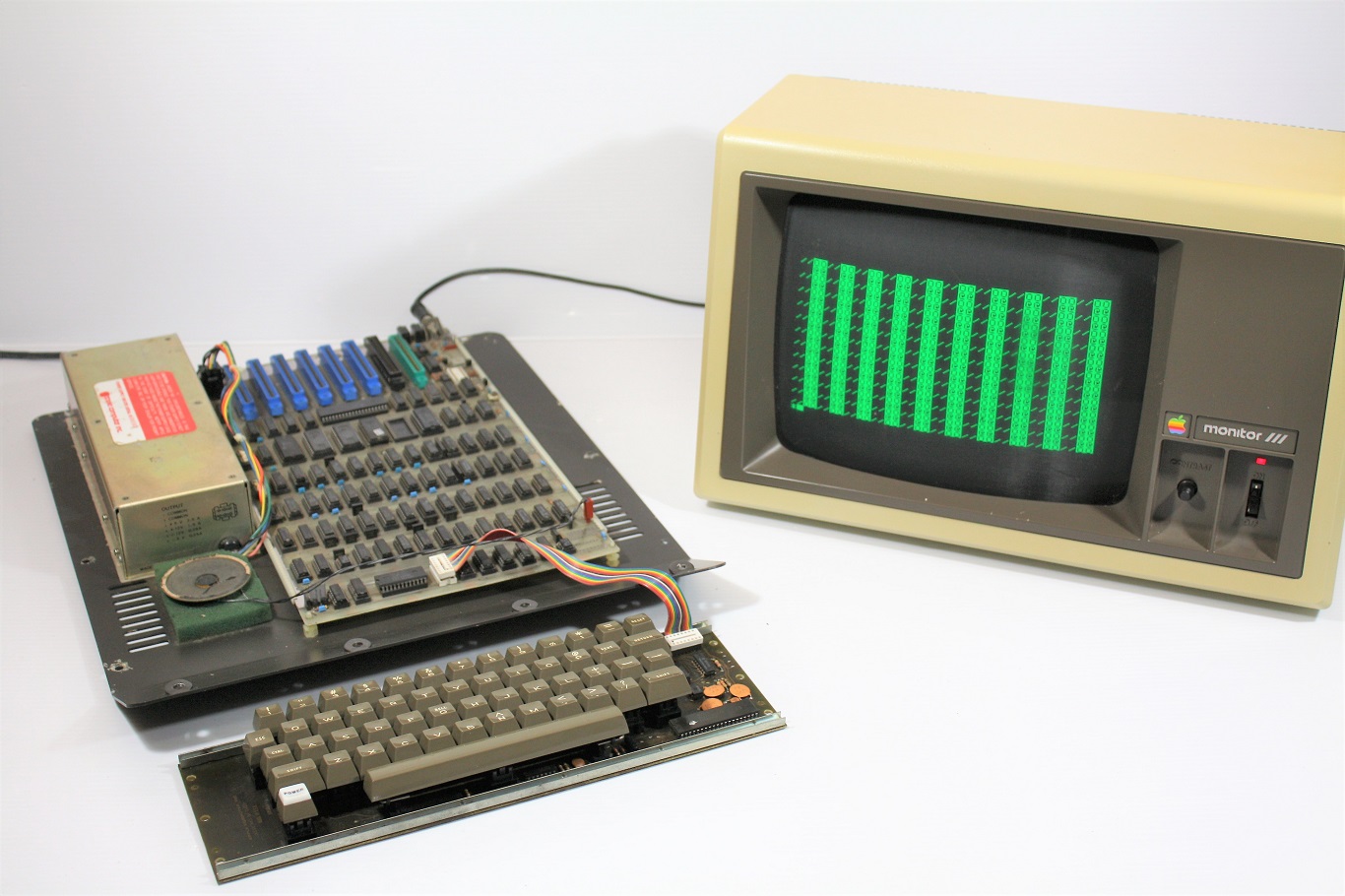

Image icon Apple II Rev 3 - Integer BASIC Monitor prompt.JPG301.11 KB
Image icon Apple II Rev 3 White - Front.JPG412.38 KB

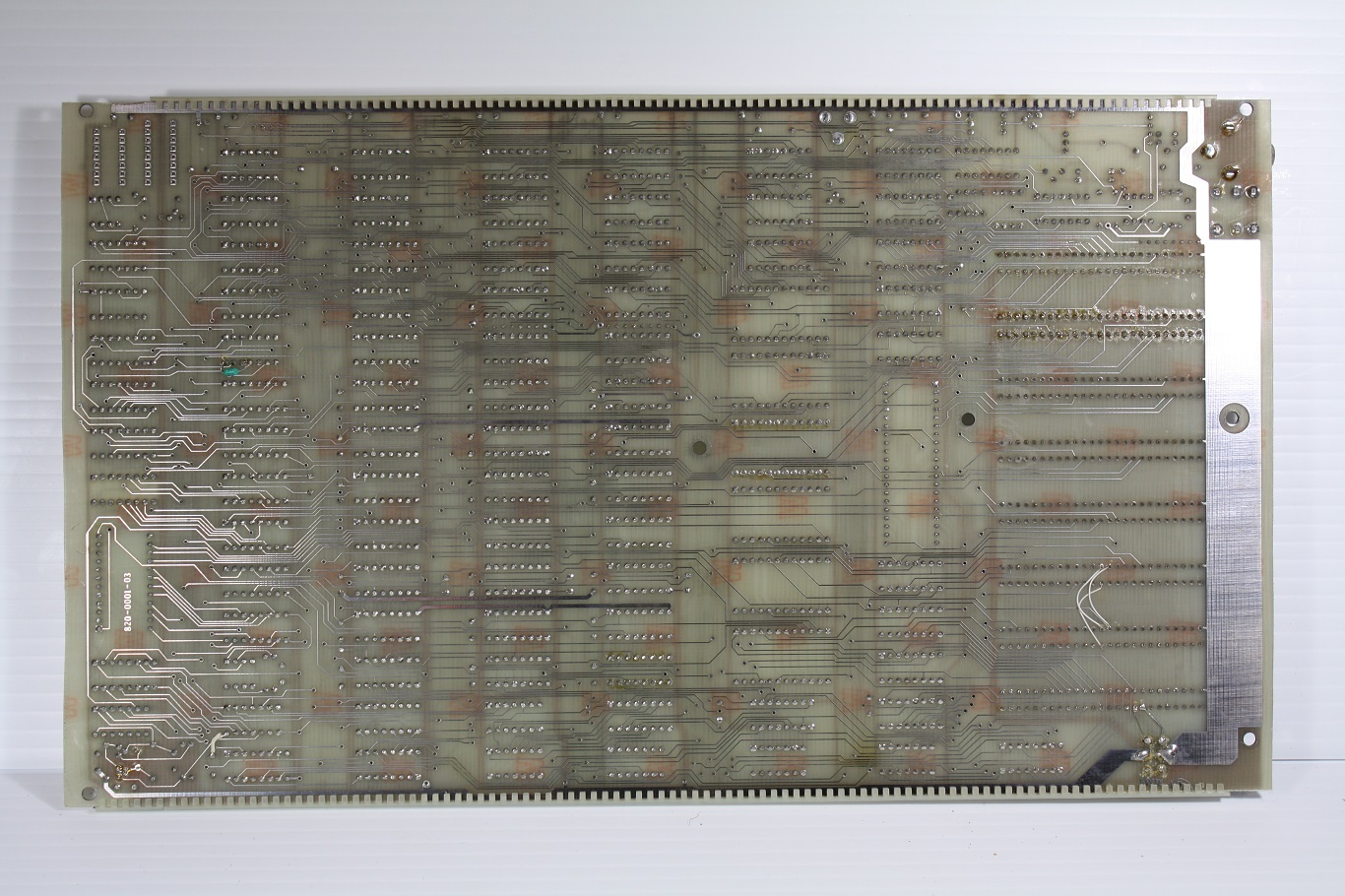

Image icon Apple II Rev 3 White - Back.JPG436 KB

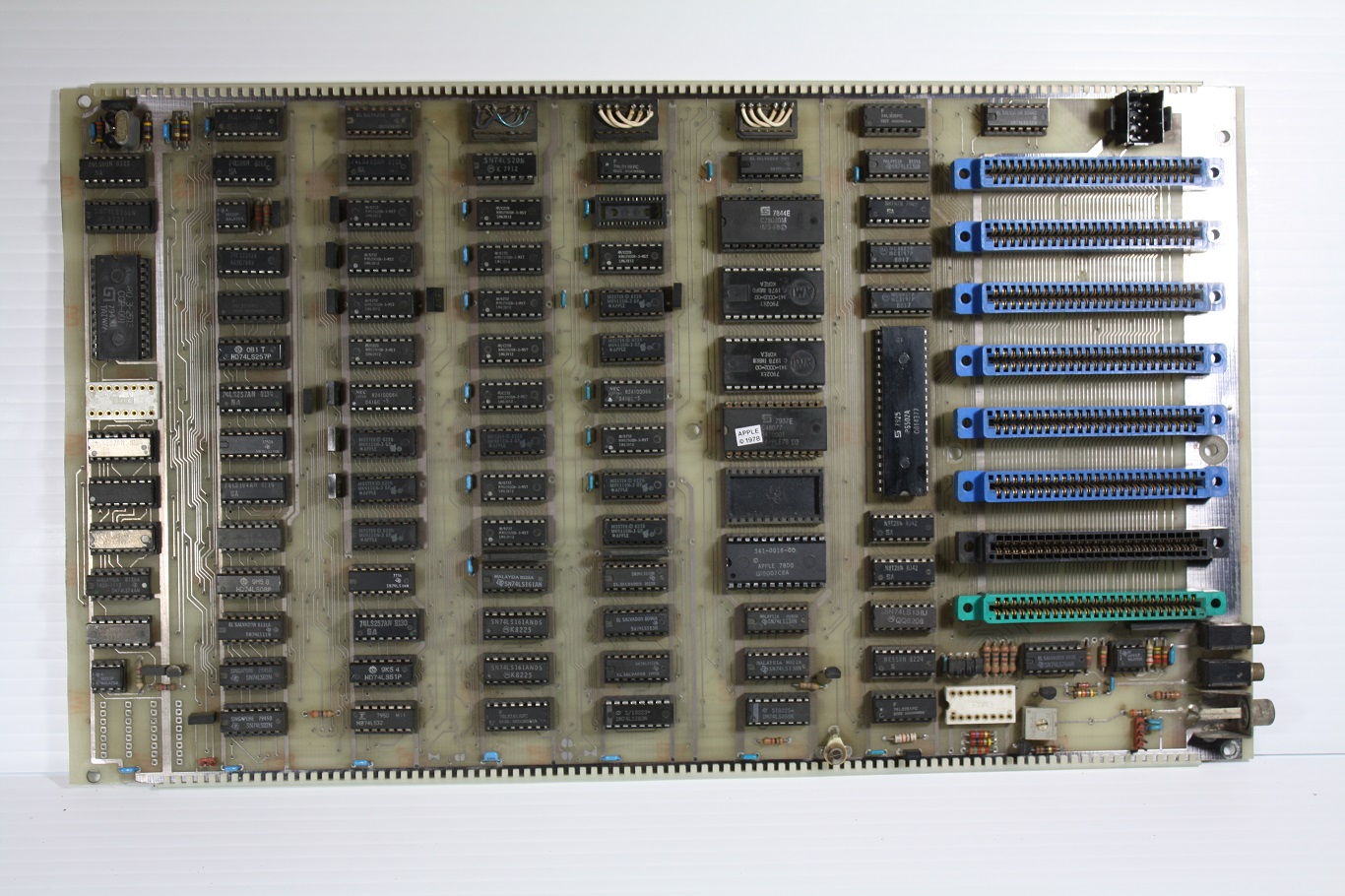

I acquired two interesting Apple II Rev 3 motherboards. One is a board that was thought to be a clone but I wanted to explore if it was actually a prototype. As with the Apple II Rev 0 prototype, one of the Rev 3 motherboards has no solder mask or graphics.

I've gone through it with a fine toothed comb and I cannot find any difference from a normal Rev 3 motherboard. What I don't know is if there was a clone that was that exact at the time. Does anyone happen to know?

I am attaching some images for review.
