Apple 2 rev0?
AttachmentSize
Image icon IMG_20220213_141221.jpg3.63 MB
Image icon IMG_20220213_141226.jpg2.91 MB
Image icon IMG_20220213_141611.jpg3.25 MB
Image icon IMG_20220213_141627.jpg3.08 MB
Image icon IMG_20220213_141646.jpg2.06 MB

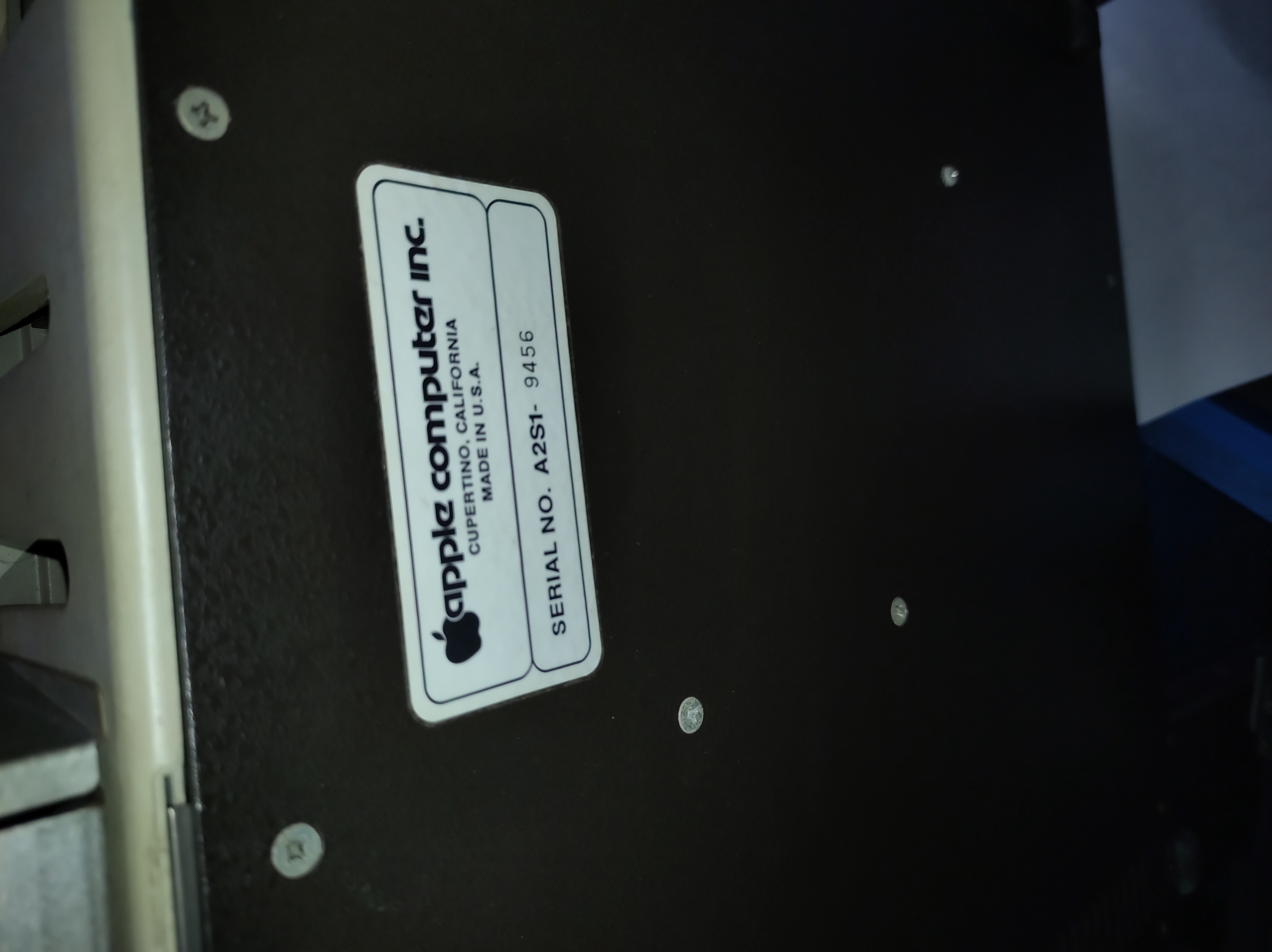

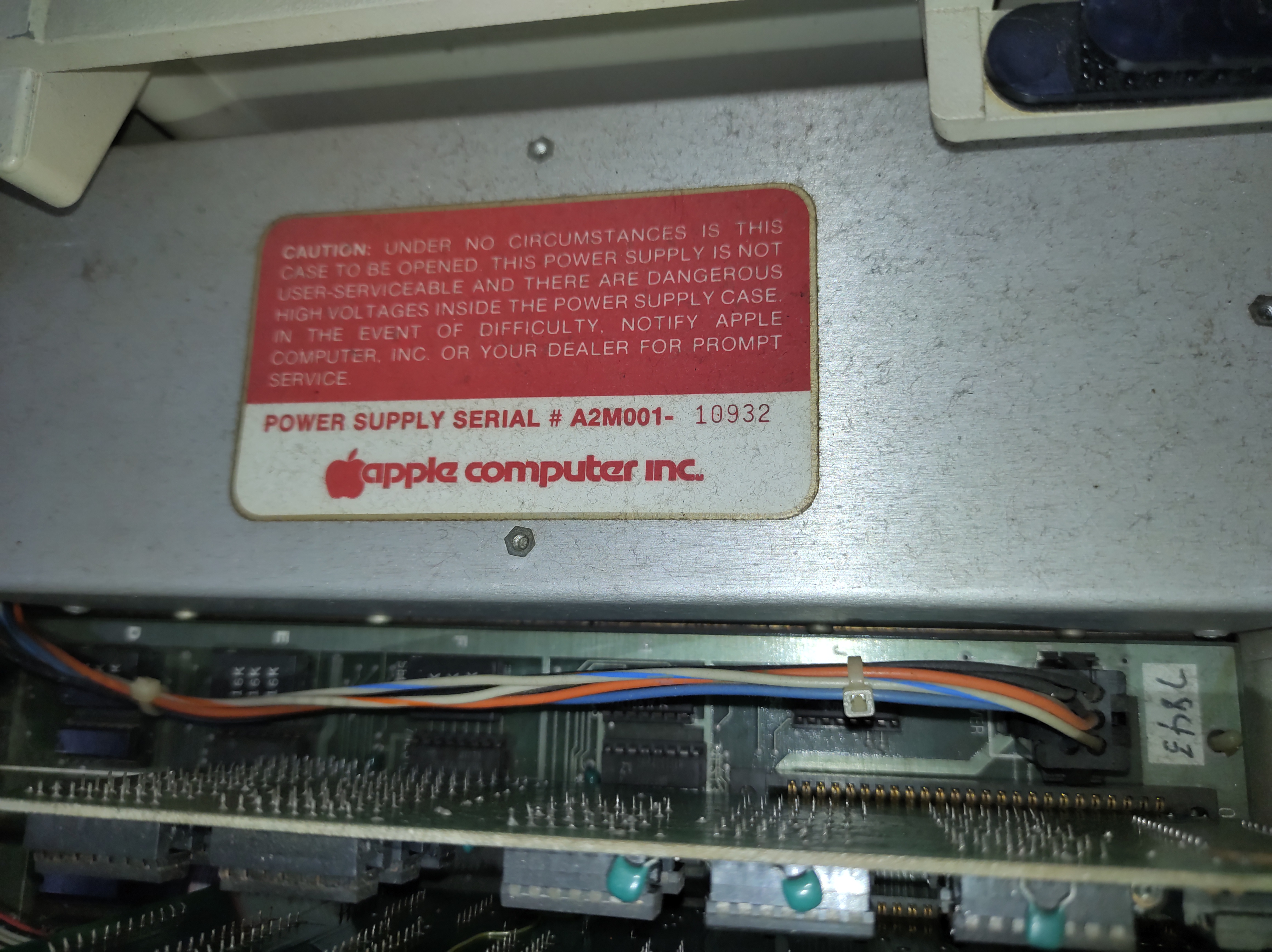

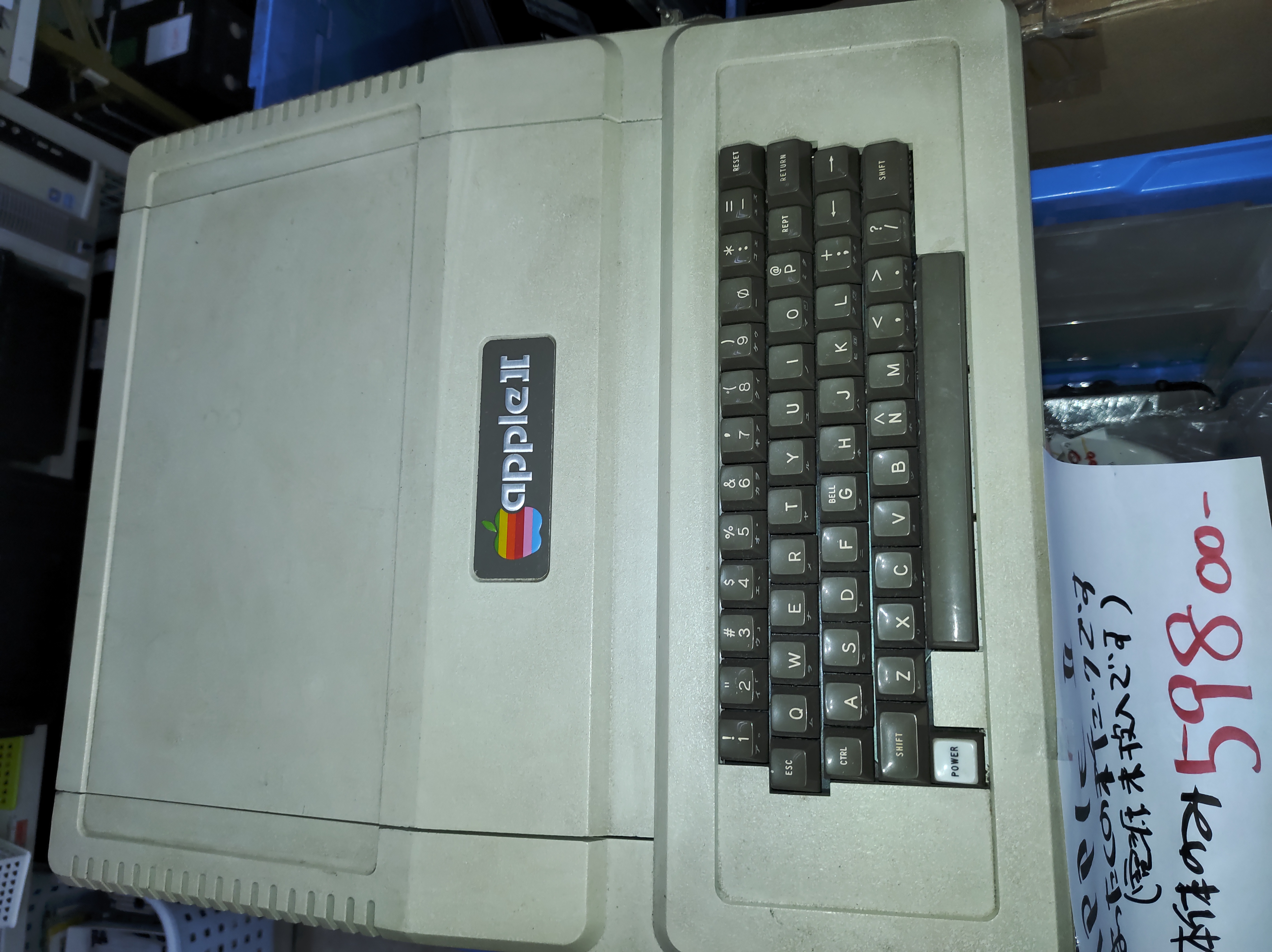

I came upon this one recently and was wondering if i got myself a rev 0? I know about apple 2 but not enough to tell this



Thanks for your help

Top
February 13, 2022 - 12:51am
robespierre
Offline
Last seen: 11 hours 39 min ago
Joined: Feb 27 2021 - 18:59
Posts: 646
No, that is not a Rev. 0.You

No, that is not a Rev. 0.

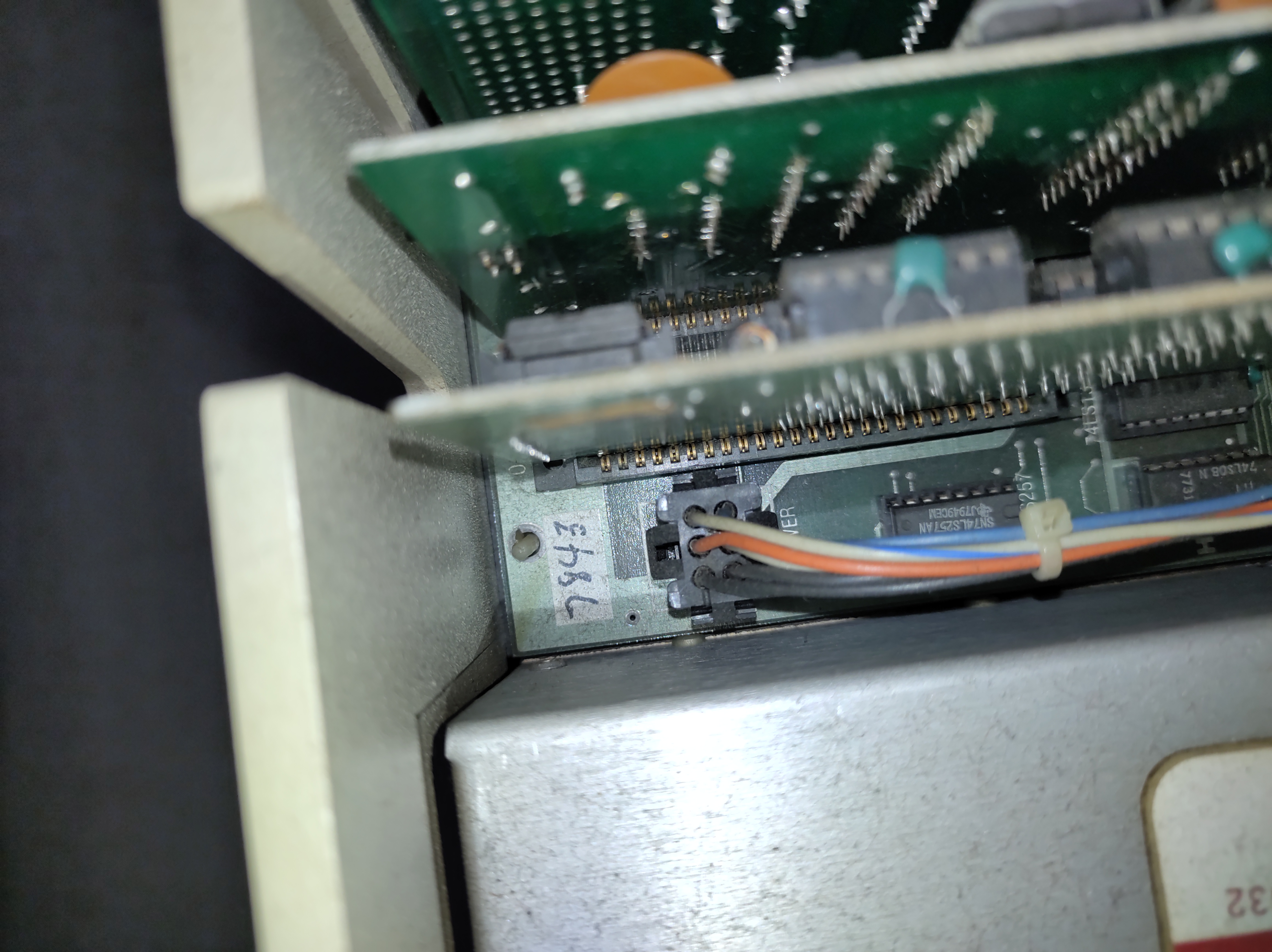

You can tell immediately because it has the aux video pin between the 4-pin video connector and the video trim pot.

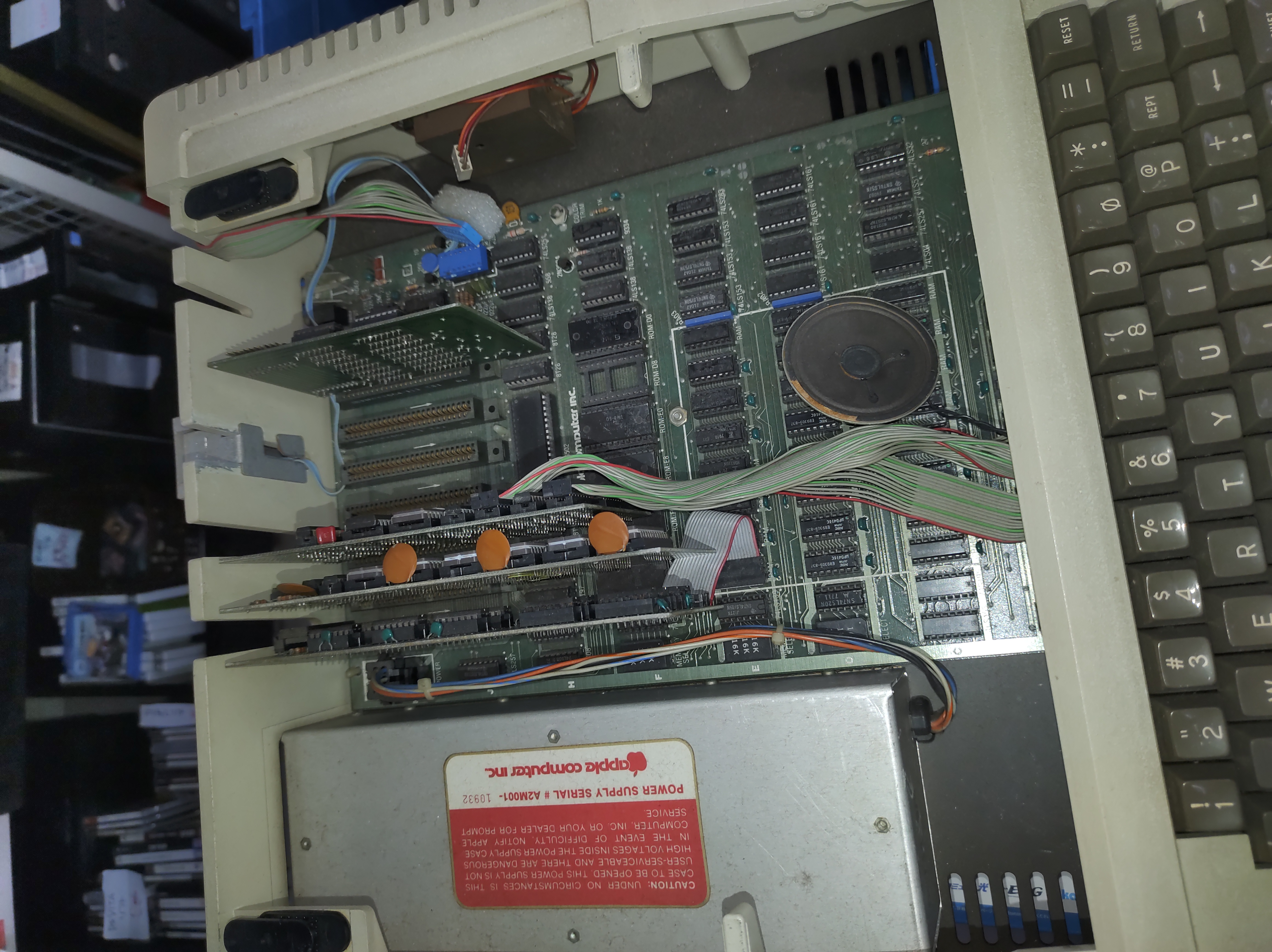

The board has RAM select jumpers, so it is somewhere between Rev. 1 and 6. The exact part number (including revision) is underneath the 6502 chip.
