Trying to figure out why the +12 wire is at 18V on an apple II clone power supply.

3 posts / 0 new
Log in or register to post comments
Last post
November 4, 2009 - 11:03pm
#1
dani9678
Offline
Last seen: 7 years 9 months ago
Joined: Sep 10 2009 - 23:48
Posts: 26
Trying to figure out why the +12 wire is at 18V on an apple II clone power supply.
AttachmentSize
Image icon P9180196.JPG424.48 KB
Image icon P9180200.JPG473.72 KB

Anybody here ever had a problem where the +12 lead is reading higher then it should? I replaced one of the swollen capacitors to see if that helped but it didn't. All of the other output power leads are in spec(-12v,5v,-5v). Anybody have any ideas?
Thanks,

Matt

Top
November 4, 2009 - 11:06pm
dani9678
Offline
Last seen: 7 years 9 months ago
Joined: Sep 10 2009 - 23:48
Posts: 26

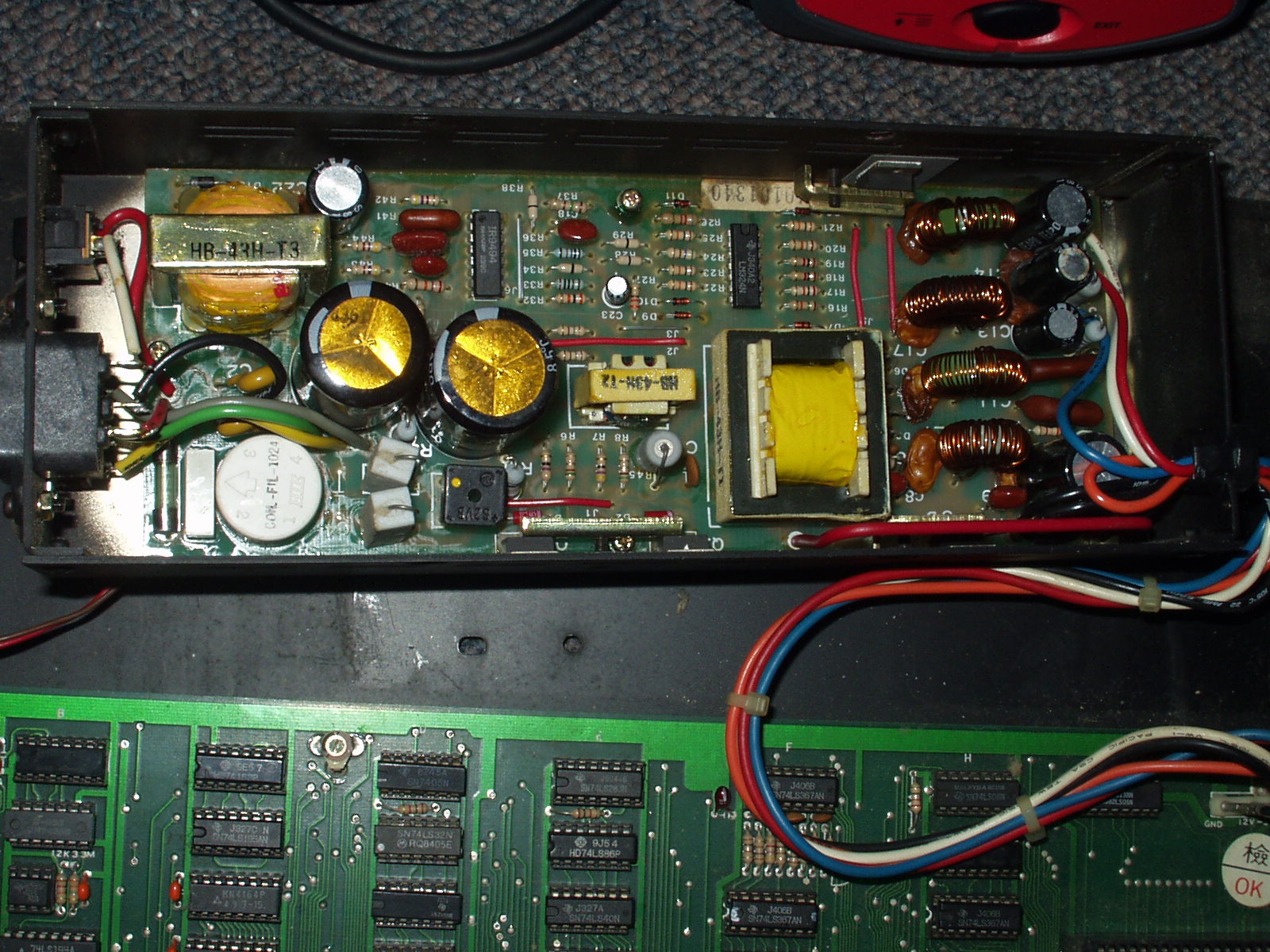

Pics of the power supply.

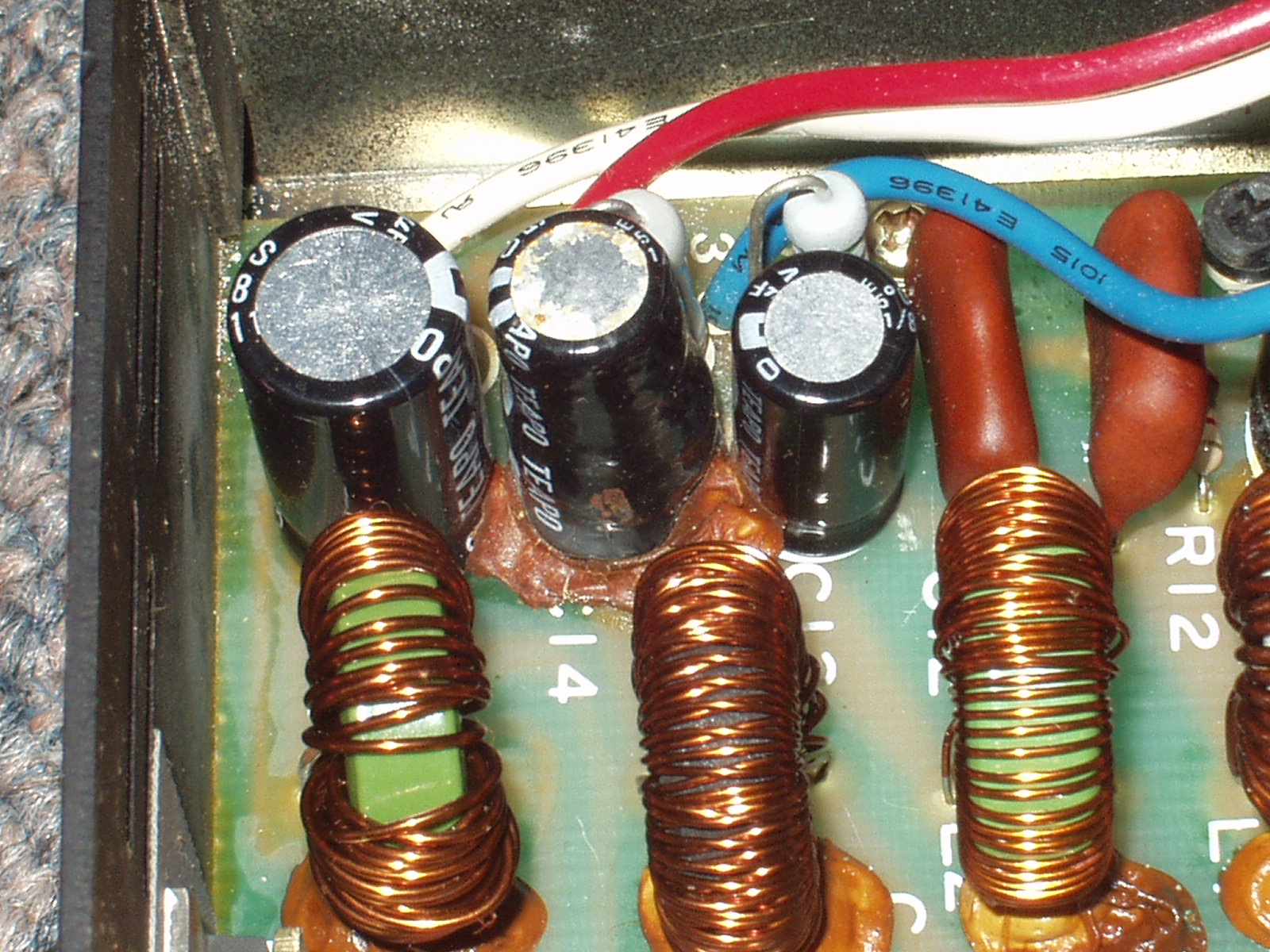

The two pics that I posted of the power supply are before I replaced the swollen capacitor. The bad capacitor is most noticeable in the second picture.

Top
January 15, 2013 - 2:45pm
dani9678
Offline
Last seen: 7 years 9 months ago
Joined: Sep 10 2009 - 23:48
Posts: 26
Re: Pics of the power supply.

I replaced all capacitors but I still had a problem with excessive voltage. I replaced the board with a modern version and all is good.
