Power Button Mod - Close up of empty LED holes

Submitted by tao_ops on October 13, 2004 - 2:34pm

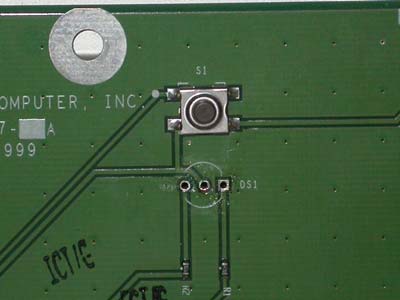

A close up of the empty holes in the board for the LED. The factory LED has two colors so left pin is for the green and the right is for orange. The center pin is shared.
