G3 stack with drives

Submitted by coius on July 13, 2006 - 8:59pm

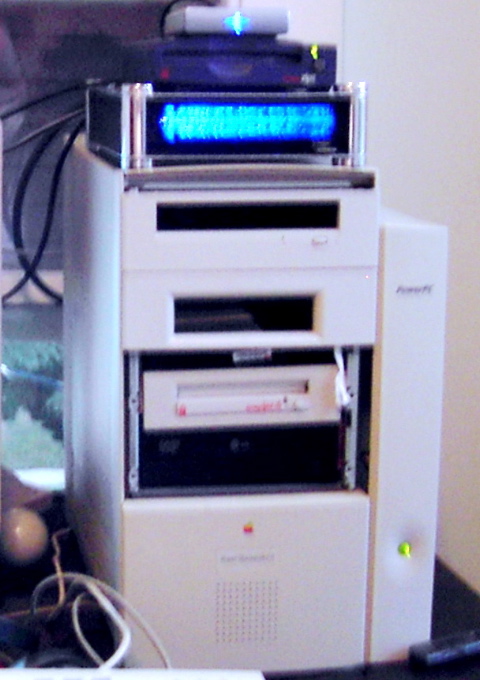

this is the setup stack from my AIO board that was put into a G3 Minitower case. the drives from top to bottom (with one hidden, the HDD) are:

Laptop USB 2.0 IDE HDD
Zip 100MB SCSI Drive
USB 2.0 10GB IDE HDD
80GB (hidden inside) IDE HDD (7200RPM) with 8MB Cache
2GB Jaz Drive.
LG 16x DVD-Rom (RAM reading capable) Drive

The setup has the following config:

300MHz B&W Zif G3 with 512KB L2 Cache (clocked to 417Mhz)
Rev 2 Rev C Gossamer Board with Rom running at 83MHz for FSB
2x IDE Channels Active
320MH SDRAM
"Wings" Video/Audio Input/Output PERCH Card. Broken right now due to a part fallen off in shipping to me. Causes artifacts when viewing the External Video in (RCA only) S-Video is fine...
SCSI (10MB's) and external (5MB's) ports, both in use.
2 Fan Exhaust Card in PCI slot A
USB 2.0 5-port Belkin PCI Card (Slot Dirol
D-Link 530TX+ 10/100bt Auto-switch Capable Ethernet card.
6MB VRAM (2MB on board, 4MB SGRAM Card added)

As you can see, i don't have all the bezels, and also none of the Drive mounts. That will be fixed soon.
